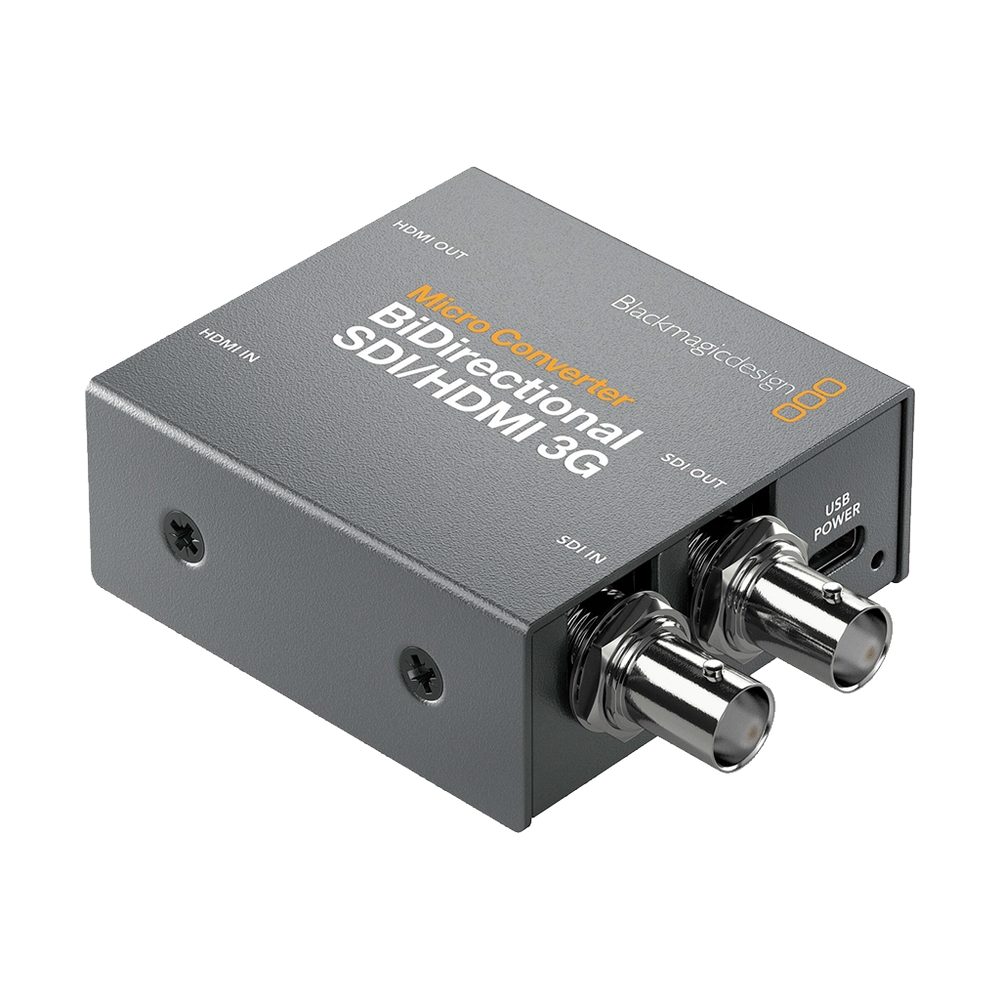

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G (used)

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G (used)

R 1,299.00 ZAR
R 1,299.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

The BlackMagic Design Micro Converter BiDirectional SDI/HDMI 3G enables you to easily combine SDI and HDMI components in your video setup. Even when using in different standards, this bidirectional converter can simultaneously convert SDI to HDMI and vice versa. Also supporting resolutions up to DCI 2K in SDI and 1080p60 in HDMI. It also offers camera control conversion for BlackMagic HDMI cameras like the BMPCC 4K or 6K, enabling you to use them with an SDI-based live switcher.
The BlackMagic Design Micro Converter BiDirectional SDI/HDMI 3G features HDMI timecode support, SDI re-clocking, support for a wide range of pro-broadcast resolutions including Cine-style 48 fps as well as both HDMI and SDI embedded audio input and output.

Rugger and Compact Design

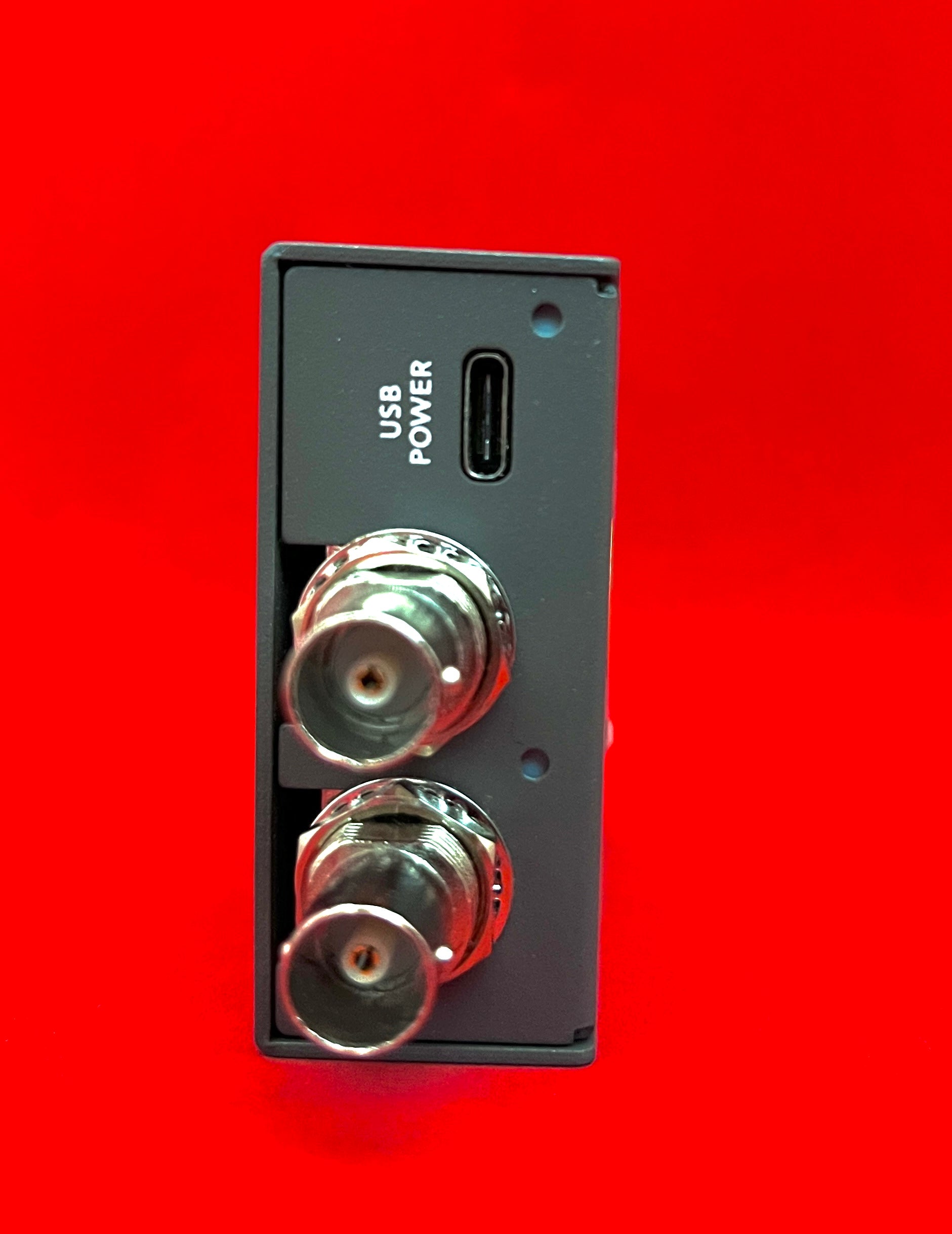

Light and robust metal housing with rugged connectors. The unit is also updatable via the USB Type-C port and your Mac or PC.

HDMI Camera Control

The BlackmMagic Design Micro Converter BiDirectional SDI/HDMI 3G offers camera control conversion for the HDMI-output BMPCC 4K or 6K, enables use with an SDI-based live switcher

SDI & HDMI Timecode

  • HD and SD timecode support
  • Converts HDMI timecode to SDI and vice versa

SDI Re-Clocking

  • Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Wider Resolution Support

  • SDI support from NTSC and PAL up to DCI 2Kp60
  • HDMI support from NTSC and PAL up to 1080p60

Embedded Audio

Supports embedded SDI and HDMI input and output

Versatile Power Options

To power the BlackMagic Design Micro Converter BiDirectional SDI/HDMI 3G the included 100-240 VAC power supply can be used, or the it can be powered from a monitor, laptop, or other component using the USB-C port.
