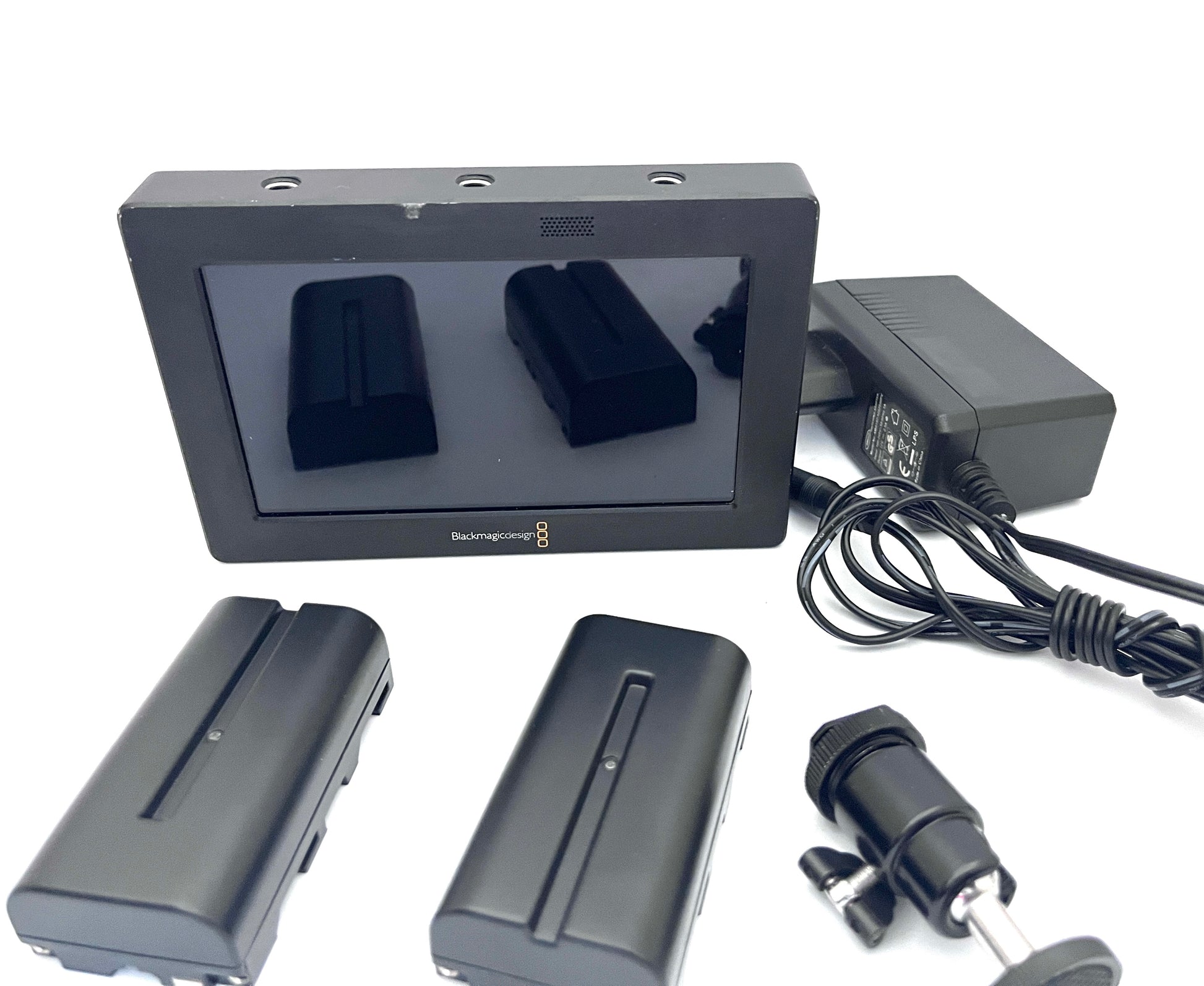

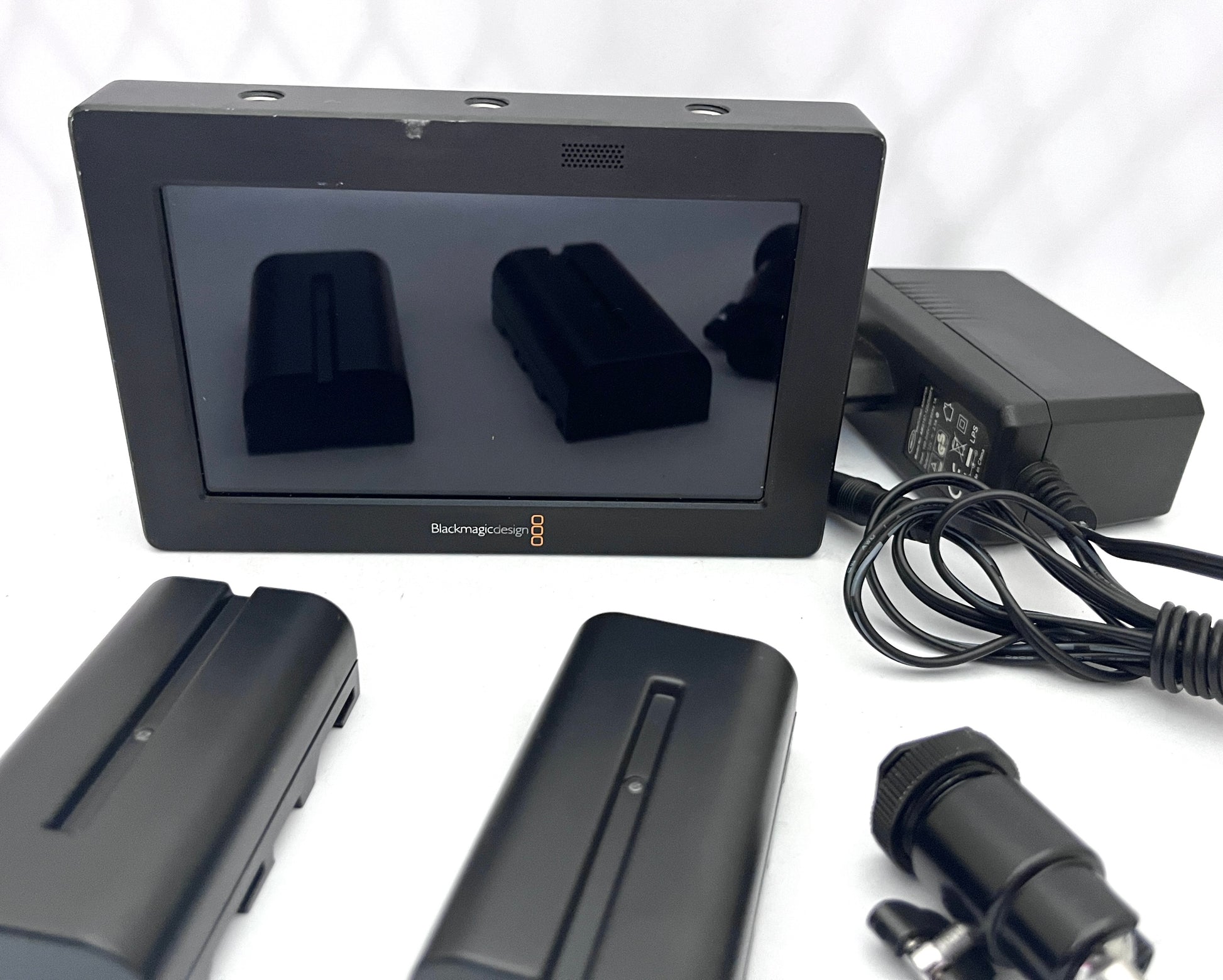

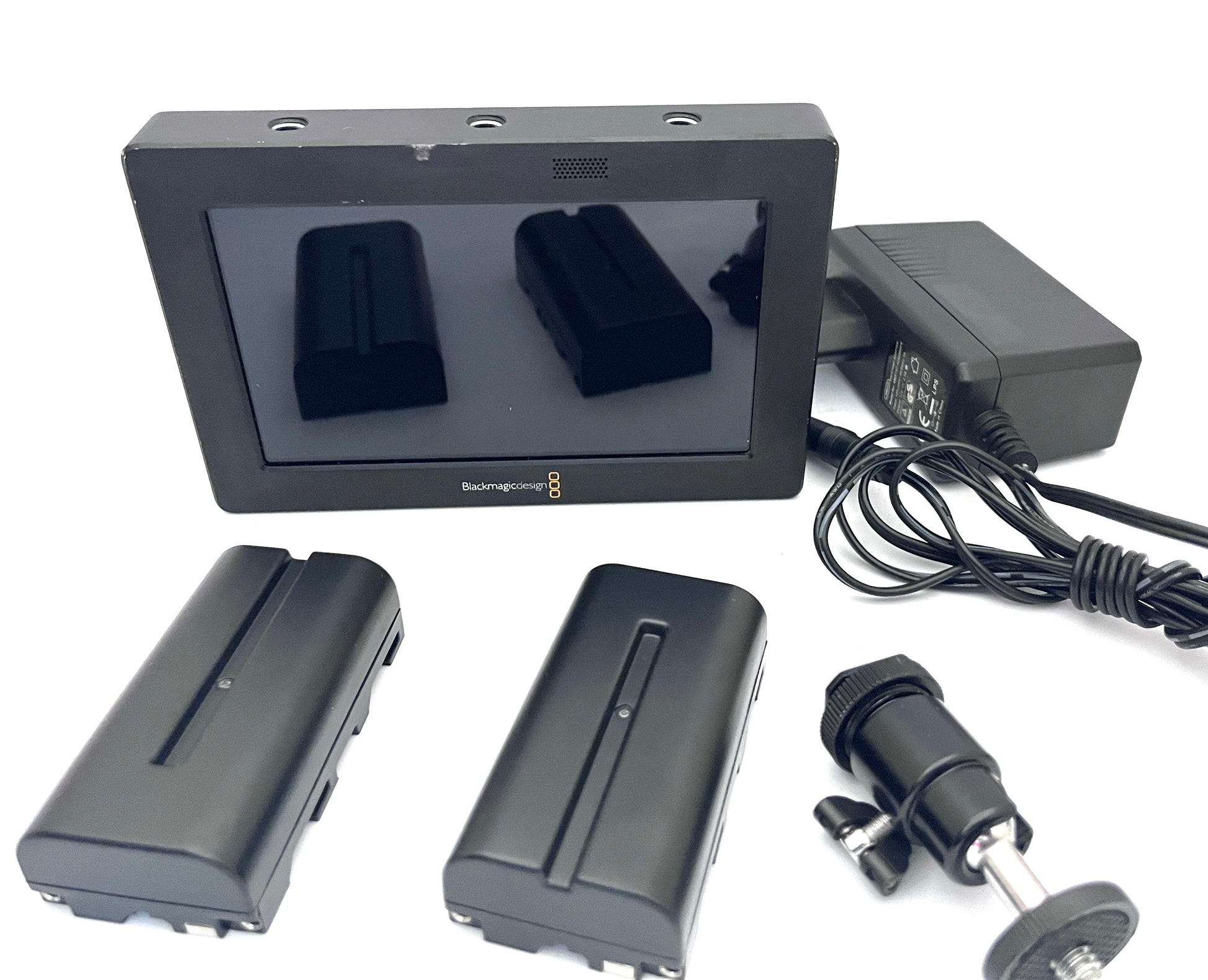

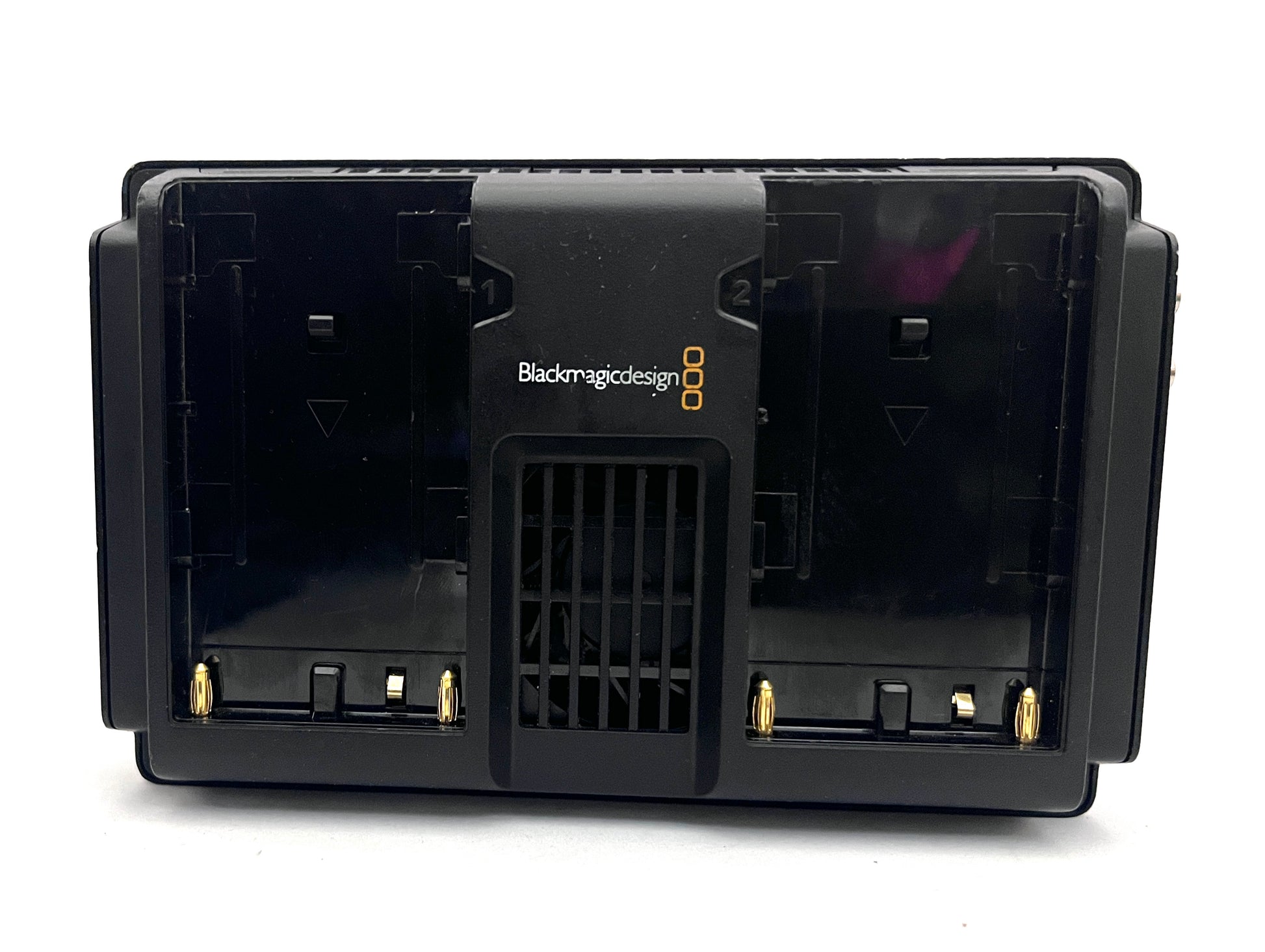

BlackMagic Design Video Assist 3G-SDI/HDMI 5" Recorder/Monitor
- BlackMagic Design Video Assist 3G-SDI/HDMI 5" Recorder/Monitor
- BlackMagic Design Power Supply for Video Assist
The BlackMagic Design Video Assist 3G-SDI/HDMI 5" Recorder/Monitor is designed to assist you in framing and focusing your shots. Featuring a bright 5" 1920 x 1080 display with 300cd/m² brightness, and it enables video output from professional as well as consumer camcorders through 3G-SDI and HMDI inputs.

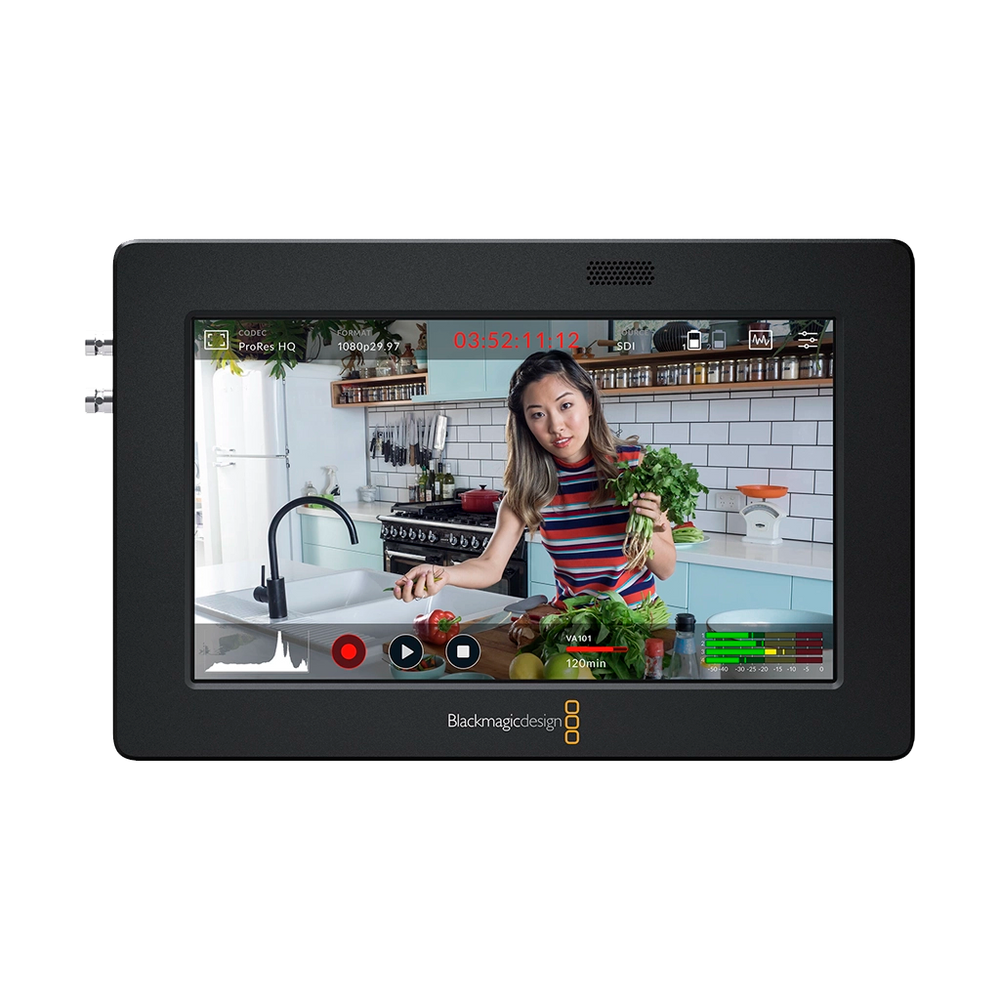

The BlackMagic Design Video Assist 3G-SDI/HDMI 5" Recorder/Monitor features a touchscreen interface that enables you to quickly access the settings as well as monitoring features such as histogram, waveform, RGB parade, and many more tools.
- BlackMagic Design Video Assist 3G-SDI/HDMI 5" Recorder/Monitor
- BlackMagic Design Power Supply for Video Assist
- BlackMagic Design Video Assist 3G-SDI/HDMI 5" Recorder/Monitor
- BlackMagic Design Power Supply for Video Assist
- The BlackMagic Design Video Assist 3G-SDI/HDMI 5" Recorder/Monitor supports video formats up to 1080p60.
- Older cameras with limited viewing and recording capabilities can be upgraded by this unit.

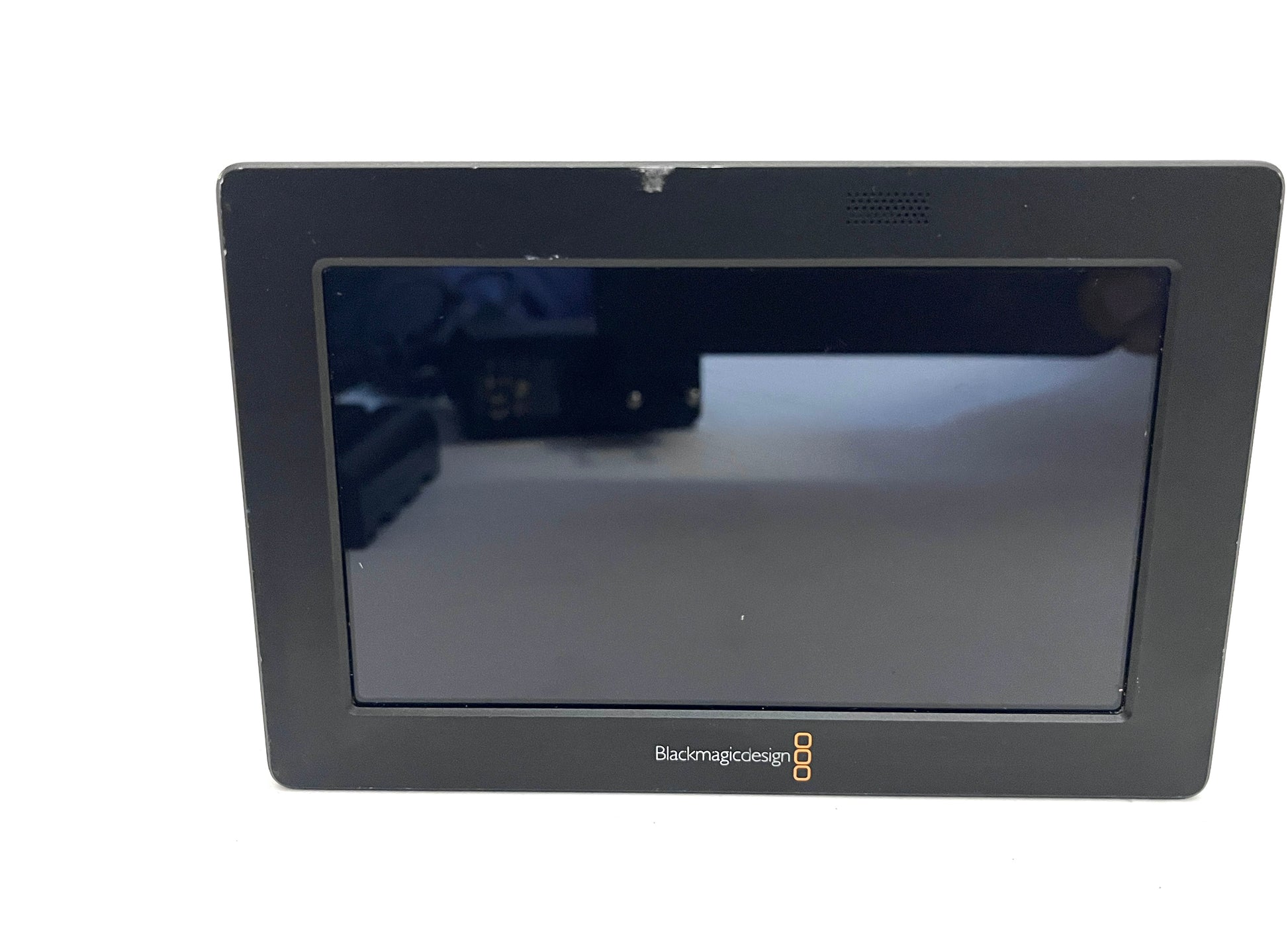

- Featuring a 5" touchscreen LCD display with customizable overlays.

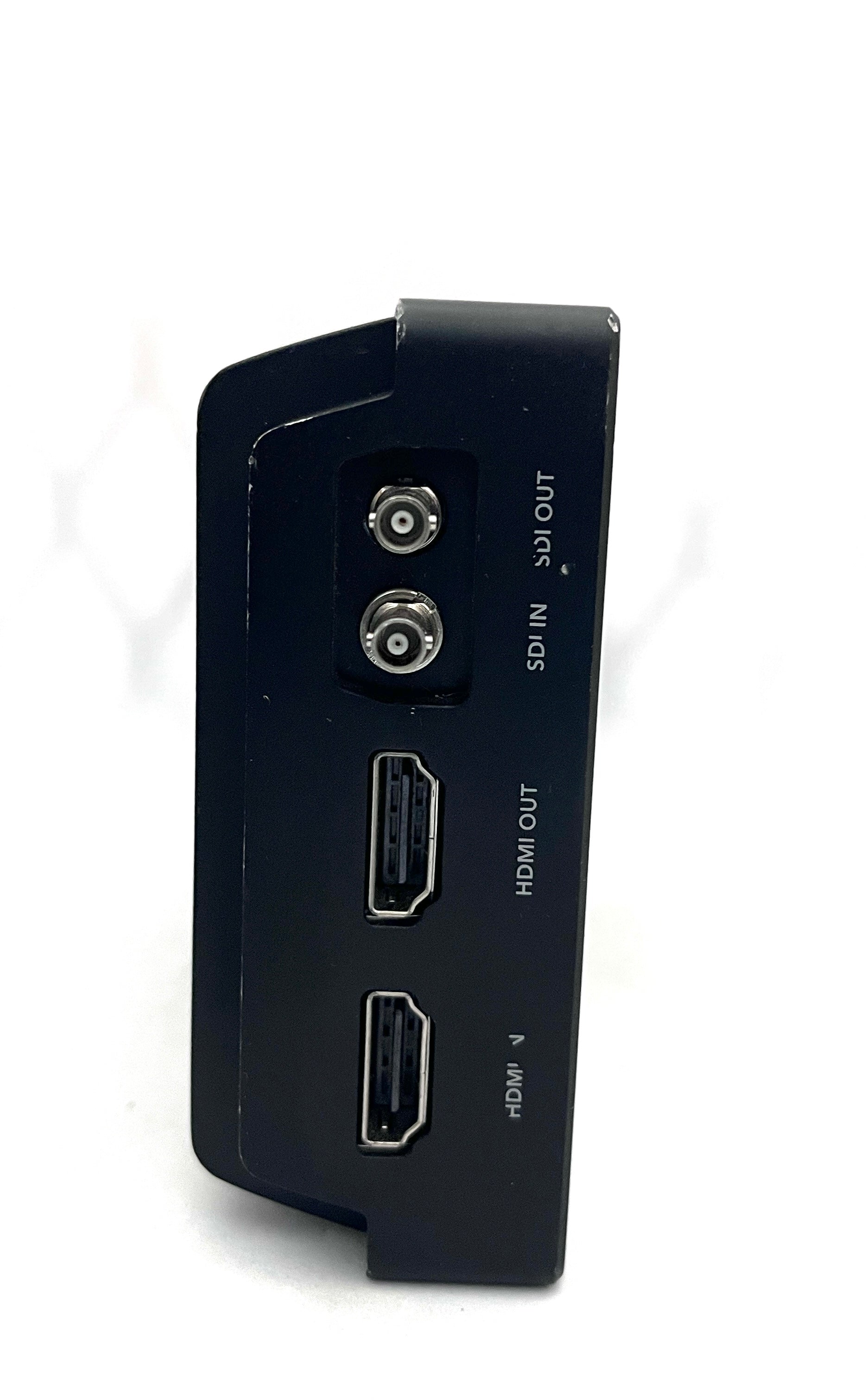

- 3G-SDI and HDMI input ports with loop-through outputs.
- 3D LUT supports customized viewing
- With this unit an connected camera can be used as a webcam by sending a streaming-friendly 1080p video signal to your computer.

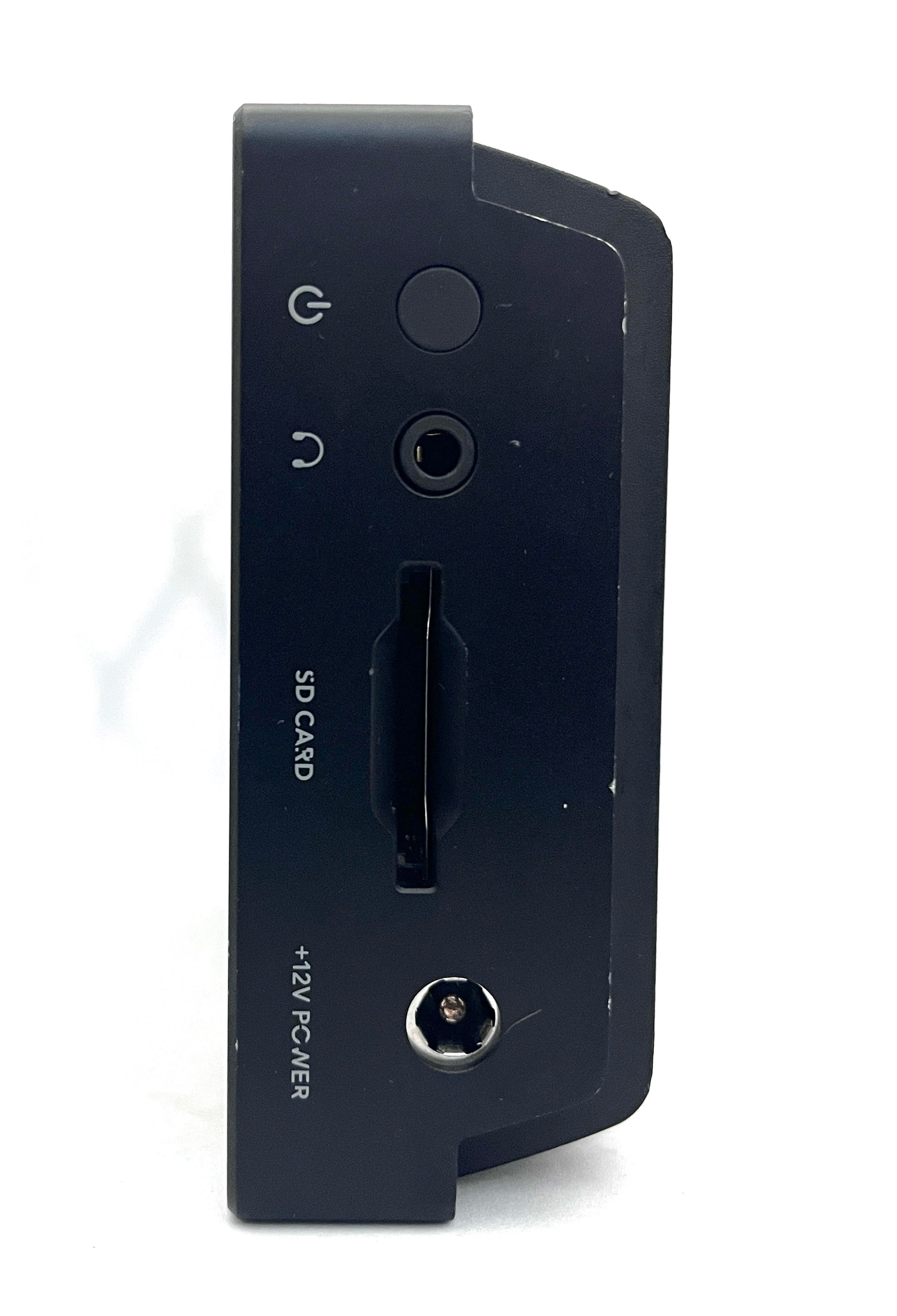

- Using a single UHS-I SD card slot the Blackmagic Design Video Assist 3G-SDI/HDMI 5" Recorder/Monitor records to an SDXC/SDHC memory card.
- Multiple display tools can be accessed using the touchscreen such as focus peaking, zebra and false colour.
Display
Panel Type
LCD
Display Size
12.7 cm
Aspect Ratio
16:9
Viewing Angle
Horizontal: 135°
Touchscreen
Yes
Maximum Brightness
300 cd/m2
Pixels Per Inch (ppi)
441 ppi
Color Gamut
100% Rec. 709
Real-Time LUT Monitoring
SDR
Image Controls
Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Wi-Fi
None
I/O
Video
1 x HDMI Type A Input
1 x Micro BNC (3G-SDI/HD-SDI/SD-SDI) Input
1 x HDMI Type A Output
1 x Micro BNC (3G-SDI/HD-SDI/SD-SDI) Output

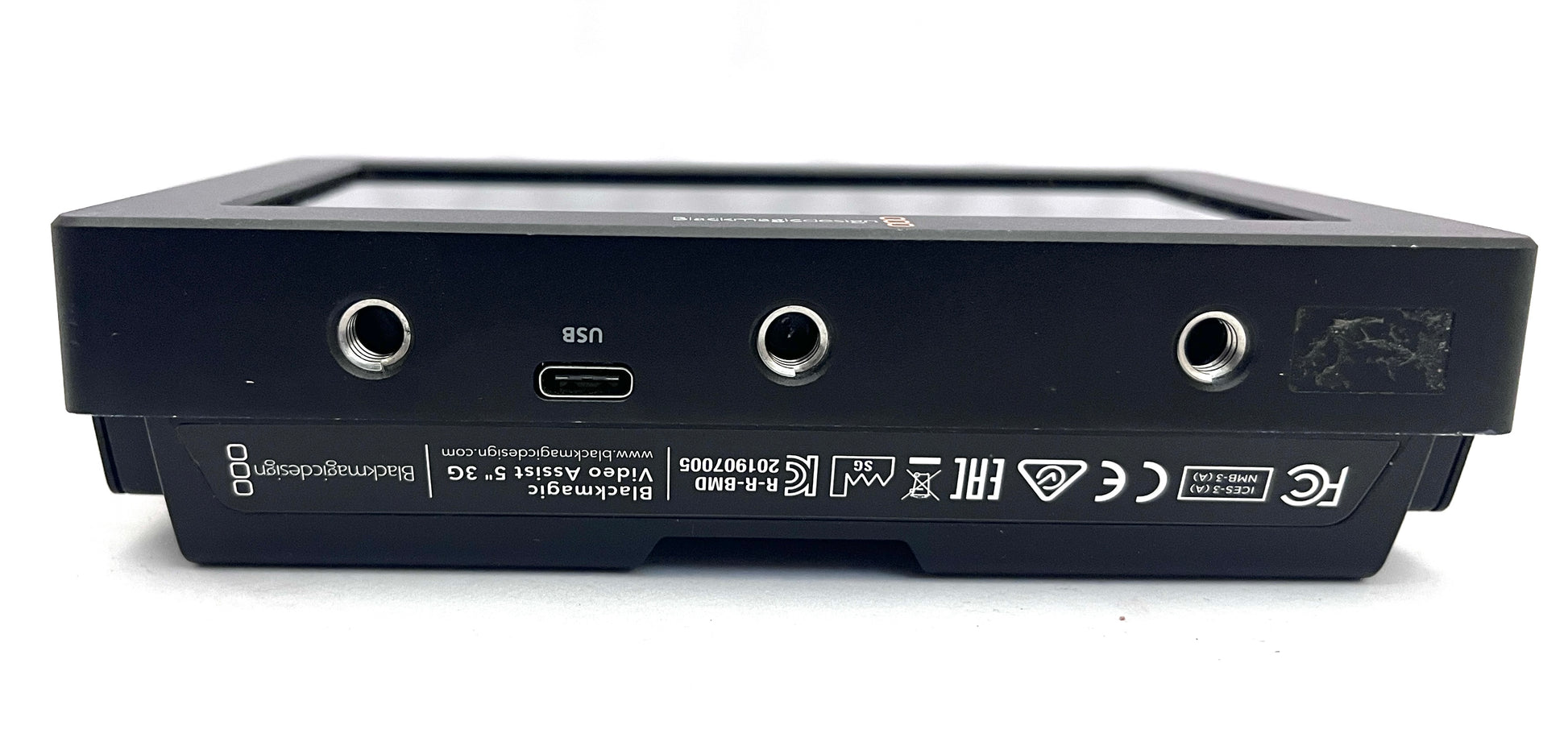

1 x USB Type-C Output
HDCP Support
Yes
Embedded Audio
HDMI: 8-Channel
SDI: 16-Channel
Audio
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
1
Power
1 x Barrel Input
Format Support
Video Format
SDI (10-Bit 4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
HDMI (10-Bit)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94Recording
Pulldown Conversion
None
Camera Trigger
None
Pre-Roll Record
None
Encoding Formats
Up to 1920 x 1080
ProRes 422, 422 HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps
DNxHD 145, 145 MXF, 220x, 220x MXF, 45, 45 MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks
16
Recording Media
1 x SDXC (UHS-I)
Metadata Tagging
Yes
Timecode Support
Yes
Phantom Power
None
Mounting
Mounting
6 x 1/4"-20 Female
Environmental
Operating Temperature
0 to 40°C
Operating Humidity
0 to 90%
Storage Temperature
-20 to 45°C
General
Material of Construction
Aluminum
Dimensions
14.81 x 8.99 x 3.66 cm
Condition
Fairly used, in perfect condition
Warranty
Limited 6month Warranty
